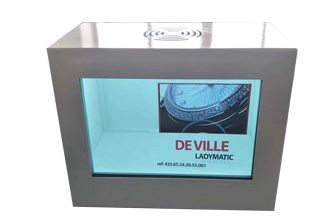

10.1 transparent screen manufacturers customized transparent expert/LCD/transparent display cabinet

Specifications:

Panel size: 10.1 inches

Panel type: a-Si TFT-IPS transparent screen

Panel model: T10.0101

Number of pixels: 1280 (RGB) × 800 (FHD)

Point spacing: 0.0565 × 0.1695 (H × V)

  Pixel layout: RGB vertical stripes

  Pixel pitch: 0.1695 × 0.1695 (H × V)

  Display area: 216.96 (H) × 135.6 (V)

  Appearance size: 265 * 200 * 10 mm (W × H × D)

  Appearance shape: flat rectangle

  Aspect ratio: 16:10 (H: V)

  Surface treatment: aluminum alloy tin plating

Panel transparency: more than 75%

Contrast: 600: 1 (Typ.) (Transmission)

  Viewing angle: 80/80/80/80 (Typ.) (CR≥10)

  Optical mode: TN, normally white display, transmissive

  Response time: 10/20 (Typ.) (Tr / Td) (ms)

  White color: Wx: 0.305; Wy: 0.320

  Display color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)

  Color gamut: 72% NTSC (CIE1931)

Working voltage: 12V5A

Working frequency: 60Hz

Panel signal system: LVDS

  Control signal system: HDMI, VGA, USB, audio input

Working temperature: -20 ° ～ 80 °

  Storage temperature: -30 ° ～ 90 °
