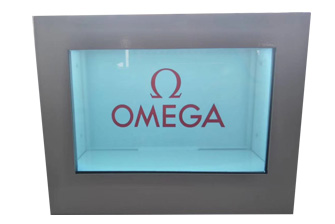

12 inch LCD touch transparent display window display cabinet customized 3D holographic transparent display screen

Touch type: infrared ten-point touch

Touch area size: is the display size of each size

Writing method: finger/stylus pen

Structure position: Built-in (front screen)

Built-in thickness: 8-10mm;

Drive mode: automatic identification, free installation;

Interface mode: USB2.0;

Way: Automatic;

Response speed: Touch:<13ms /Drawing:<13ms;

Linearity error: >8mm;

Number of touches: Over 60 millions single touch;

Anti-glare test: >100,000 LUX;

Operating system: Windows 7, windows2000/2003/XP/Vista;

Protection level: SKIN: IP65 (Option: IP68);

Board: M1;

CPU: RK3188 Coretex A9 quad-core,

The highest frequency: 1.6GHz;

Storage: 8BG EMMC NAND chip;

LVDS: 30-pin industry standard dual LVDS interface,

Support: VESA/JEITA format,

Maximum support: 1080P output;

System: Android 4.4.2;

Network: 10/100M adaptive Ethernet;

Audio: 8 ohm·6W dual audio power amplifier output;

Power supply: Megmeet 66T industrial power supply;

WIFI: Built-in high-performance USB interface WiFi module, support IEEE 802.11 b/g/n;

Input interface: HDMI output, network cable interface, interface (LineOut);

Audio: I/O (MIC);

USB2.0: (supports 2 sets of USB devices)
